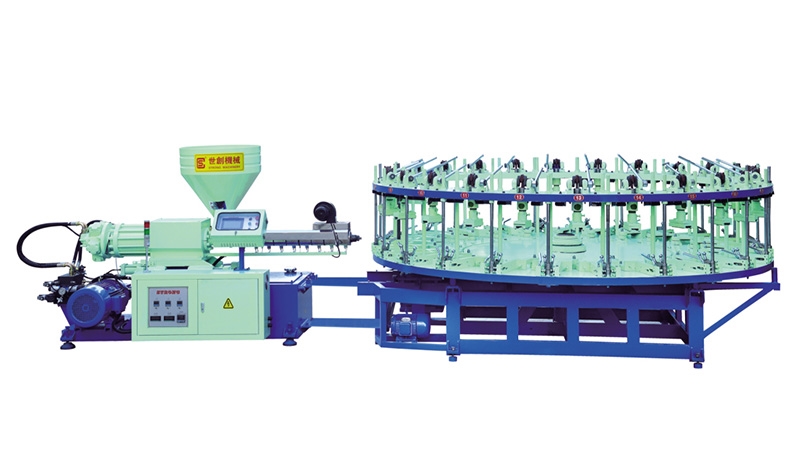

SC-312/316/320/324-1-M Manual Rotary Type Directly Injecting and Forming Machine For Mono-Color Leisure and Spotrs Shoes
2.Computer program is adoptedd to precisely control the main and vice machine and for easy operation and maintaining.
3.Each oiling system are independently controlled with fast speed and accurate pressure to make the products quality stay im grade.
4.The firm clamping mold base and strong mold clamping force lead to the together injection kf twocolors with once mold clamp for saving working time,improving production rate and promoting high profit.
| Model | Unit | SC-312-1-M | SC-316-1-M | SC-320-1-M | SC-324-1-M |
| Raw materrial | PVC | PVC | PVC | PVC | |
| Work stations | stations | 12 | 16 | 20 | 24 |
| Max injection capacity | cm³ | 650 | 650 | 650 | 650 |
| Injection pressure | kg/cm³ | 70 | 70 | 70 | 70 |
| Screw length and diameter ratio | mm | 22：1 | 22：1 | 22：1 | 22：1 |
| Way of mould-closing | Scissor type | Scissor type | Scissor type | Scissor type | |
| Screw rotating speed | r.p.m | 0-135 | 0-135 | 0-135 | 0-135 |
| Screw diameter | mm | 75 | 75 | 75 | 75 |
| Motor | kw | 20.5 | 20.5 | 20.5 | 20.5 |
| Last stroke | mm | 60 | 60 | 60 | 60 |
| Shoes last height | mm | 210-260 | 210-260 | 210-260 | 210-260 |
| Size of max mould (LxWxH) | mm | 340x180x60 | 340x180x60 | 340x180x60 | 340x180x60 |
| Machine size (L*W*H) | mm | 5000x2350x1950 | 5900x3000x1950 | 6300x3350x1950 | 7100x4000x1950 |
| Machine weight | kg | 8500 | 10900 | 11800 | 12800 |
