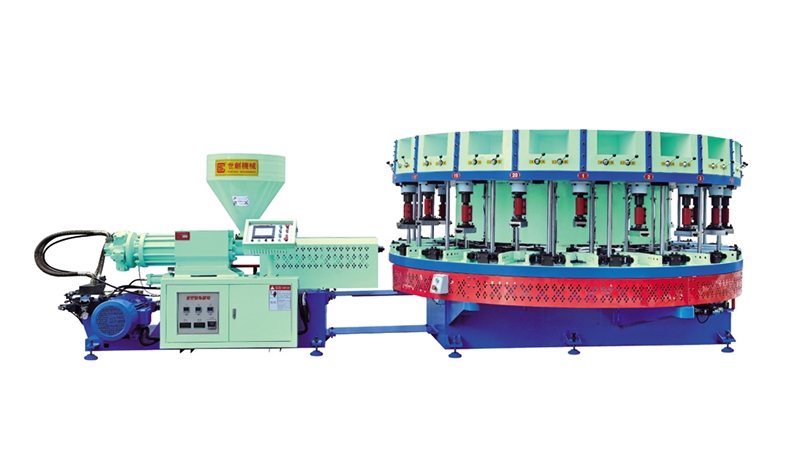

AUTOMATIC ROTARY TYPE DIRECTLY INJECTING AND FORMING MACHINE FOR MONO-COLOR LEISURE AND SPORTS SHOES2.The two functions of extrusion and injection can be selected at will.
3.High plastifying capacity,the plastifying temperature can be controlled automatically by pre-selection.
4.With Full computer measurement,the proportion of pressure control system, accurate measurement, fast injection our machine selects the injection volume according to the requirements of the mould on the station.
5.With empty mould selection function, Our machine does not stop at the empty station.This improves work efficiency.
6.The sequence of mould-closing and shoe last-pressing can be selected at will.
7.Drived by the variable frequency motor, my machine has positive and negative platform rotation, translate smooth, adjust easily with low noise and fuel economy.
Model | Unit | SC-312-1 | SC-316-1 | SC-320-1 | SC-324-1 |
Raw materrial | PVC | PVC | PVC | PVC | |
Work stations | stations | 12 | 16 | 20 | 24 |
Max injection capacity | cm3 | 650 | 650 | 650 | 650 |
Injection pressure | kg/cm3 | 70 | 70 | 70 | 70 |
Screw length and diameter ratio | mm | 22: 1 | 22: 1 | 22: 1 | 22: 1 |
Way of mould-closing | Scissor type | Scissor type | Scissor type | Scissor type | |
Screw rotating speed | r.p.m | 0-135 | 0-135 | 0-135 | 0-135 |
Screw diameter | mm | 75 | 75 | 75 | 75 |
Motor | kw | 20.5 | 20.5 | 20.5 | 20.5 |
Last stroke | mm | 60 | 60 | 60 | 60 |
Shoes last height | mm | 210-260 | 210-260 | 210-260 | 210-260 |
Size of max mould (LxWxH) | mm | 340X180X60 | 340X180X60 | 340X180X60 | 340X180X60 |
Machine size (L*W*H) | mm | 5000X2350X1950 | 5900X3000X1950 | 6300X3350X1950 | 7100X4000X1950 |
Machine weight | kg | 8500 | 10900 | 11800 | 12800 |
The above technical datas are just for reference,in case of any change without any prior notices. |
