Home - Products - EVA shooting monochrome machine

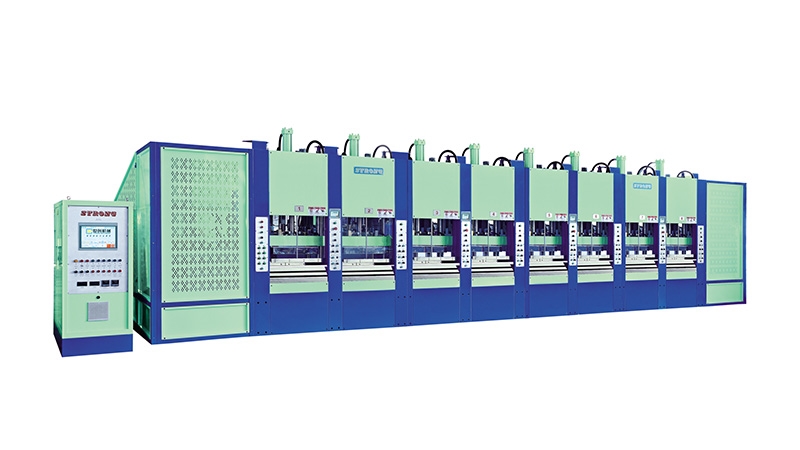

AUTOMATIC FOAM EVA FOUR INJECTOR INJECTION MOULDING MACHINE (EURODEAN STANDARD)
1.INJECTION SYSTEM:
The measuring mechanism utilizes potentiometer detection and coordinates with the operation of PLC to control material quantity precisely. The two injectors move with linear slide and brake motor drive, and its high-speed movement is controlled by inverter; the detent mechanism utilizes rotary encoder to detection place precisely.
2. MOULD CLAMPING SYSTEM:
Two-section quick mould opening and clamping mechanism is equipped with detecting device that has function detection of fully mould clamping. The low operation platform can improve mould-opening stroke and be apply to various kinds of moulds.
3. PC CONTROLLING SYSTEM:
Utilize windows controlling system and human computer system, coordinates with contact screen, we can control material injection rotation speed, injection quantity, injection time, injection temperature, curing time and quantity; the system is easily learned and operated. On the PLC module system, each function and constructure is clear.
4. OIL HYDRAULIC SYSTEM:
Utilized servo oil hydraulic system, improve system safety, stability, decrease noise to enhance production efficiency. Coordinating with computer control system, we can control pressure and flow rate of different sections precisely.
5. ENERGY-CONSERVATION DESIGN
No need water circulation for mould stations and utilize efficient heating insulator.
6. SERVO ENERGY-CONSERVATION SYSTEM
Selecting servo energy conservation system can save about 30% energy.
Model Unit SC-906L4 SC-908L4 SC-9010L4
Raw materials EVA EVA EVA
Work stations 站/stations 6 8 10
Mould clamping force ton 180 180 180
Mould size mm 290X550X2 290X550X2 290X550X2
Mould opening stroke mm 360 360 360
Screw diameter mm 60/65 60/65 60/65
Max injection capacity g 900/1060 900/1060 900/1060
Injection pressure kg/cm2 1000 1000 1000
Injection speed cm/sec 10 10 10
Screw rotating speed r.p.m 0-165 0-165 0-165
Temperature control 段/stations 4 4 4
Heating power of barrel kw 13X2 13X2 13X2
Heating power of mould kw 74 98 122
Total electricity kw 185 210 235
Oil tank capacity l 1000x2 1000x2 1000x2
Machine size (L*W*H) mm 10500X5000X2700 12500X5000X2700 14500X5000X2700
Machine weight kg 31000 36500 42000
The above technical datas are just for reference,in case of any change without any prior notices.
