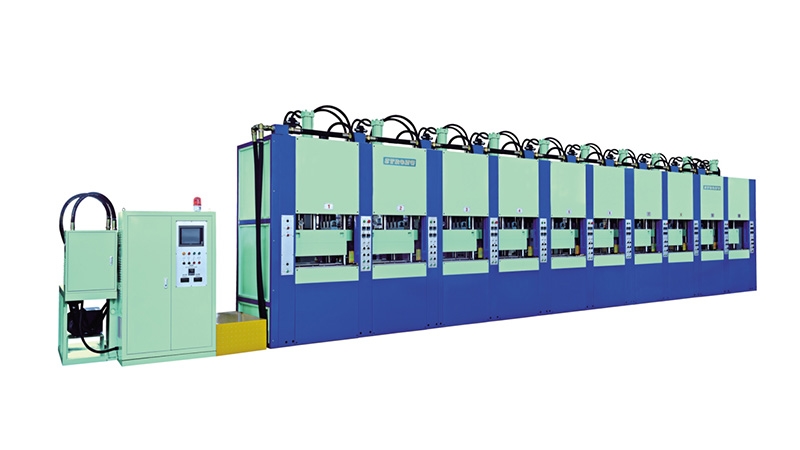

AUTOMATIC VACUUM COVER FOAM EVA MOULDING MACHINE (ONE/MULTI-COLOR)2.Full closed vancuum space creates efficient vacuum performance that makes high quality and stable products.
3.Don't need water circulation for mould station,using efficient heat insulation material.
4.Saving space for factory.
5.This machine can produce flexible; it can produce single-color, double-color, multi-color and multi-type of soles and slippers at the same time
Model | Unit | SC-904 | SC-906 | SC-908 | SC-910 |
Work stations | stations | 4 | 6 | 8 | 10 |
Mould clamping force | ton | 240 | 240 | 240 | 240 |
Mould opening stroke | mm | 390 | 390 | 390 | 390 |
Heating platesize | mm | 330X600X2sets | 330X600X2sets | 330X600X2sets | 330X600X2sets |
Mould height | mm | 100-200 | 100-200 | 100-200 | 100-200 |
Heating power of mould | km | 64 | 96 | 128 | 160 |
Motor | kw | 22 | 22 | 22 | 22 |
Total electricity | kw | 90 | 122 | 155 | 186 |
Total Oil | l | 550 | 850 | 850 | 850 |
Machine size (L*W*H) | mm | 7000x1100x2900 | 9000x1100X2900 | 11000x1100x2900 | 13000x1100x2900 |
Machine weight | kg | 20000 | 29000 | 38000 | 47000 |
The above technical datas are just for reference,in case of any change without any prior notices. |
