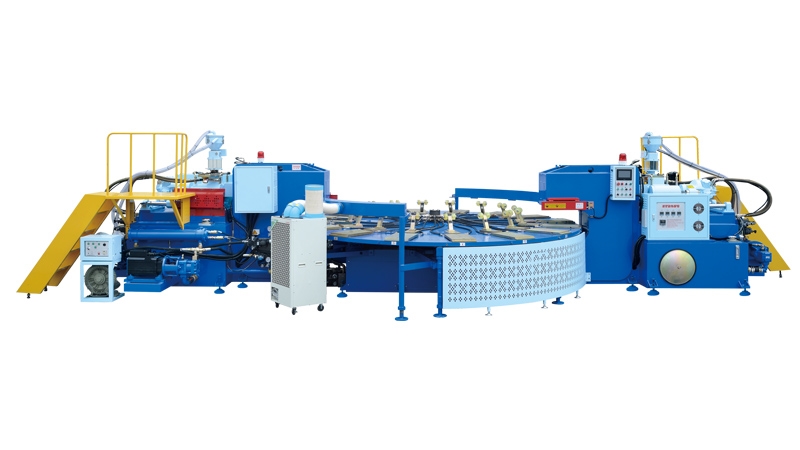

AUTOMATIC PREFORM EVA INJECTION MOULDING MACHIN
1.Efficiently producting single/ multi color preform EVA
2. The main control box is equied with industrial human-computer control system to set up producing situation with contacting ways.
3.Utilize double pump hydraulic system.
4.Utilize proportional control valve,can control pressure and flow volume in multi-section precisely.
5.Two-section fast clamping unit and evenly force can protect and extend the using life of mould.
6.Enhanced C type clamping unit can reduce products rough selvedge.
7.High efficiency water cooling system.
8.Material stopping unit,avoids material over flow and controls volume precisely.
9.Volume control by potentionmeter to ensure products size stable.
2. The main control box is equied with industrial human-computer control system to set up producing situation with contacting ways.
3.Utilize double pump hydraulic system.
4.Utilize proportional control valve,can control pressure and flow volume in multi-section precisely.
5.Two-section fast clamping unit and evenly force can protect and extend the using life of mould.
6.Enhanced C type clamping unit can reduce products rough selvedge.
7.High efficiency water cooling system.
8.Material stopping unit,avoids material over flow and controls volume precisely.
9.Volume control by potentionmeter to ensure products size stable.
| Model | Unit | SC-516-2 | SC-520-2 | SC-524-2 |
| Raw materials | EVA | EVA | EVA | |
| Work stations | stations | 16 | 20 | 24 |
| Mould clamping force | ton | 100 | 100 | 100 |
| Mould space(max) | mm | 220 | 220 | 220 |
| Screw diameter | mm | 60X2 | 60X2 | 60X2 |
| Max injection capacity | g | 550/550 | 550/550 | 550/550 |
| Injection pressure | kg/cm2 | 140 | 140 | 140 |
| Injection speed | cm/sec | 0-10 | 0-10 | 0-10 |
| Screw rotating speed | r.p.m | 0-165 | 0-165 | 0-165 |
| Temperature control | 段/stations | 4 | 4 | 4 |
| Heater of barrel | kw | 11 | 11 | 11 |
| Total electricity | kw | 51 | 51 | 51 |
| Motor | kw | 16.4X2+7.5 | 16.4X2+7.5 | 16.4X2+7.5 |
| Machine size (L*W*H) | mm | 9000X4200X2800 | 8000X8000X2800 | 9000X9000X2800 |
| Machine weight | kg | 16000 | 17000 | 18000 |
| The above technical datas are just for reference,in case of any change without any prior notices. | ||||
