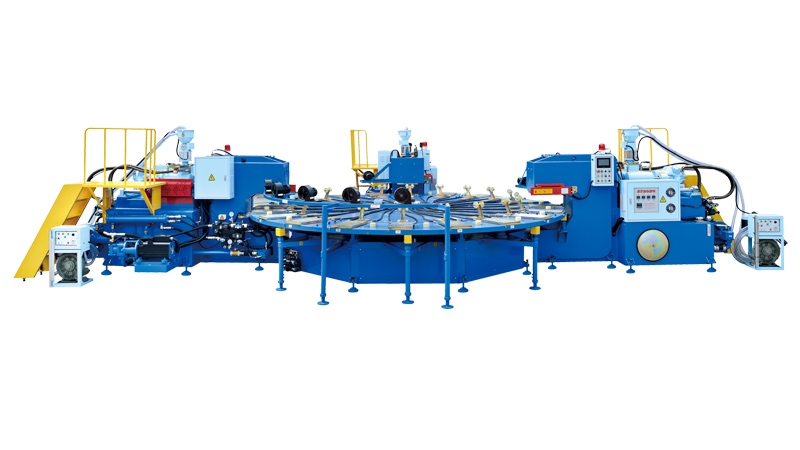

AUTOMATIC PREFORM EVA INJECTION MOULDING MACHINE
1.Efficiently producting single/ multi color preform EVA.
2. The main control box is equied with industrial human-computer control system to set up producing situation with contacting ways.
3.Utilize double pump hydraulic system.
4.Utilize proportional control valve,can control pressure and flow volume in multi-section precisely.
5.Two-section fast clamping unit and evenly force can protect and extend the using life of mould.
6.Enhanced C type clamping unit can reduce products rough selvedge.
7.High efficiency water cooling system.
8.Material stopping unit,avoids material over flow and controls volume precisely.
9.Volume control by potentionmeter to ensure products size stable.
Model Unit SC-520-4 SC-524-4
Raw materials EVA EVA
Work stations stations 20 24
Mould clamping force ton 100 100
Mould space(max) mm 220 220
Screw diameter mm 60X3 60X3
Max injection capacity g 550/550/550 550/550/550
Injection pressure kg/cm2 140 140
Injection speed cm/sec 0-10 0-10
Screw rotating speed r.p.m 0-165 0-165
Temperature control 段/stations 4 4
Heater of barrel kw 16.5 16.5
Total electricity kw 67 67
Motor kw 16.4X3+7.5 16.4X3+7.5
Machine size (L*W*H) mm 11000X11000X2800 13000X13000X2800
Machine weight kg 32000 35000
The above technical datas are just for reference,in case of any change without any prior notices.
