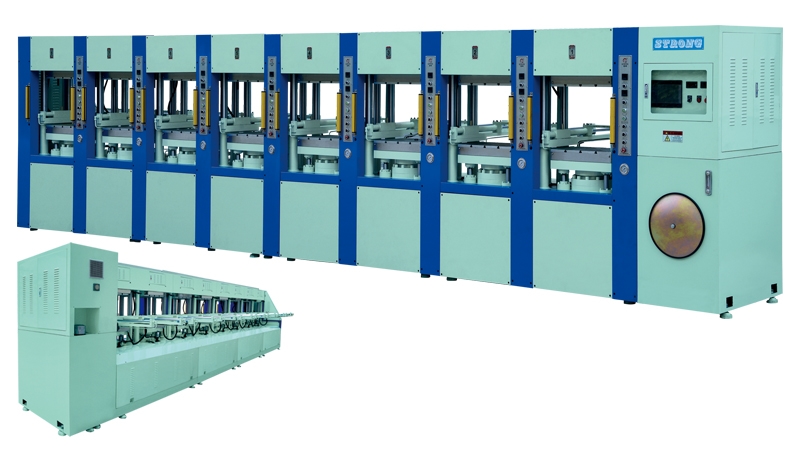

QF-8206AS Double colors pouring material forming moulding machine
1.The unique structure design with four pillars for cylinder at every station guarantees no rupture and distortion and strong stability.
2.It uses servo motor to make the machine to work fast and make the stations go up and down faster,more economical and efficient and environmental.
3.The machine is easy to be controlled and maintained.
4.It can produce the single color and two colors shoe soles and slippers ,etc.in one time.
2.It uses servo motor to make the machine to work fast and make the stations go up and down faster,more economical and efficient and environmental.
3.The machine is easy to be controlled and maintained.
4.It can produce the single color and two colors shoe soles and slippers ,etc.in one time.
| Serial Number | Mould Clamping Force（T) | Station Number | Total Electricity（KW) | Mold Holder Size（mm) | Mould Opening Stroke（mm) | Heating Way Electricity | Machine Size（mm) |
| 1 | 100 | 4 | 44 | 400x550 | 500 | 电加热 | 4770x1350x2085 |
| 2 | 100 | 6 | 69 | 400x550 | 500 | 电加热 | 6690x1350x2085 |
| 3 | 100 | 8 | 88 | 400x550 | 500 | 电加热 | 8610x1350x2085 |
| 4 | 100 | 4 | 44 | 400x600 | 500 | 电加热 | 4970x1350x2085 |
| 5 | 100 | 6 | 69 | 400x600 | 500 | 电加热 | 6990x1450x2085 |
| 6 | 100 | 8 | 88 | 400x600 | 500 | 电加热 | 9010x1450x2085 |
| 7 | 150 | 6 | 69 | 500x600 | 500 | 电加热 | 7000x1450x2085 |
| 8 | 150 | 8 | 88 | 500x600 | 500 | 电加热 | 9100x1450X2085 |
